Recopilacion de manuales y archivos para la impresora Creality 3d Ender

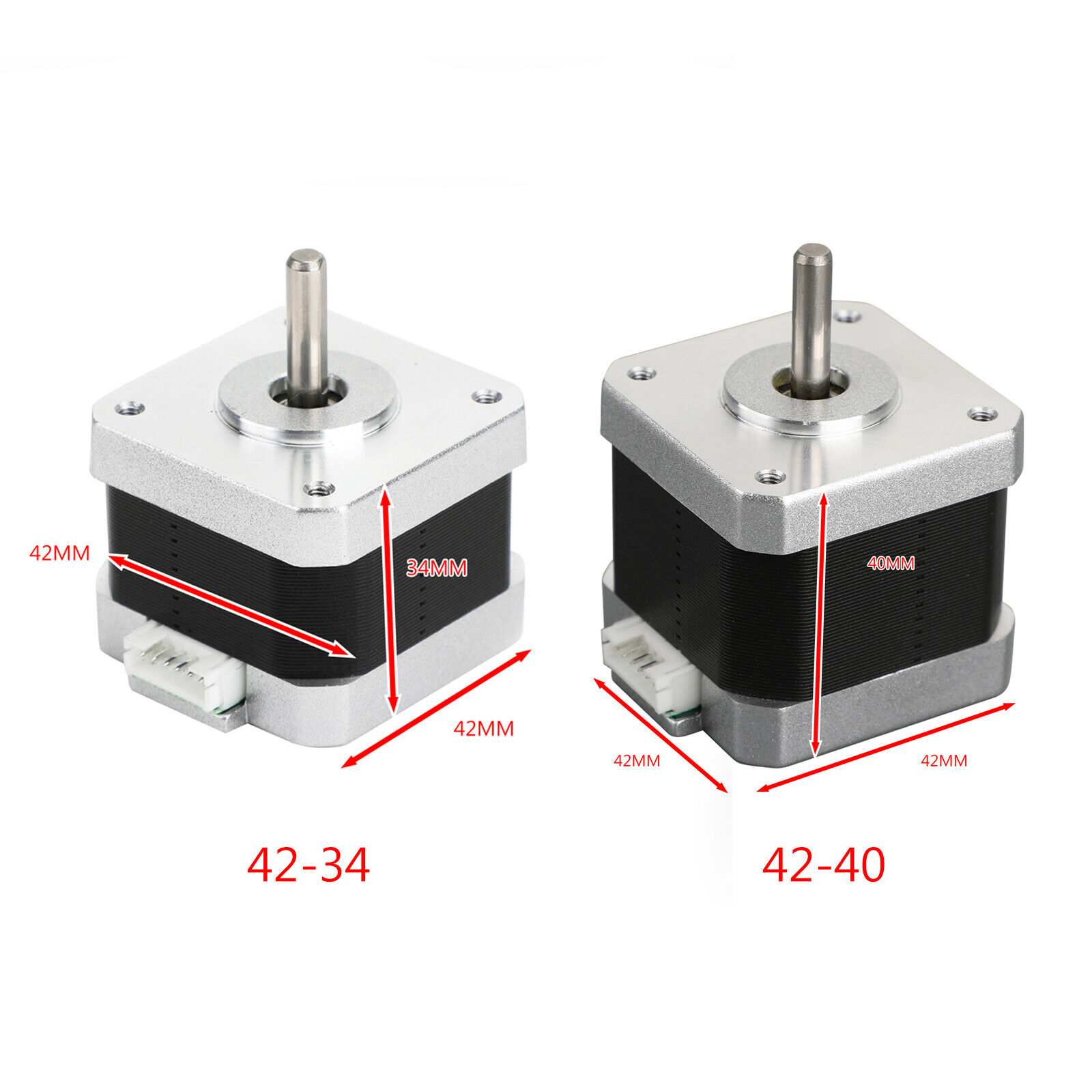

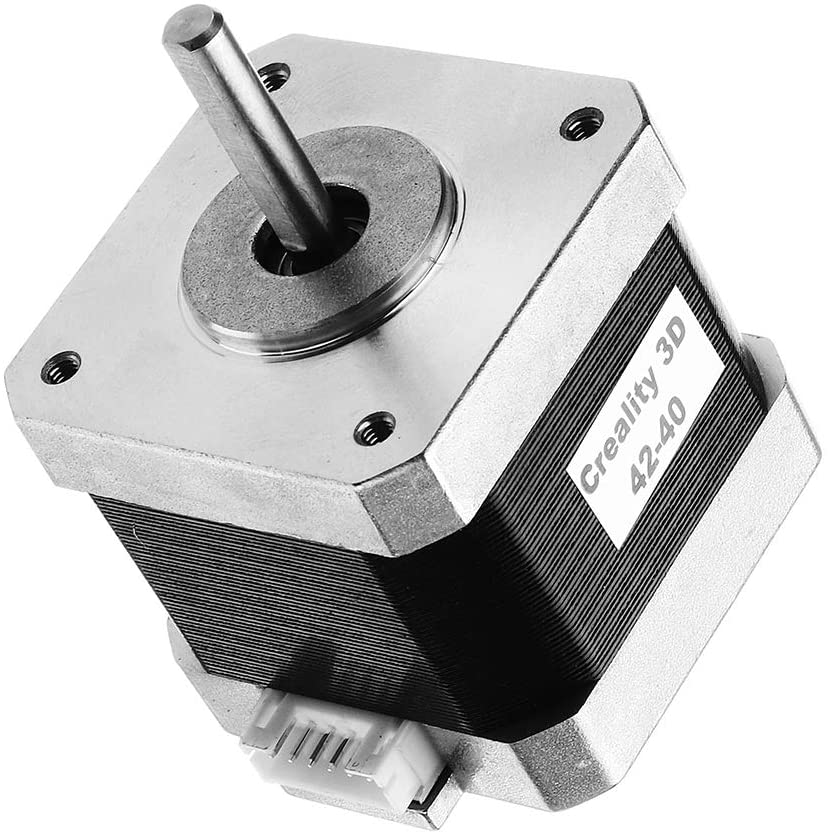

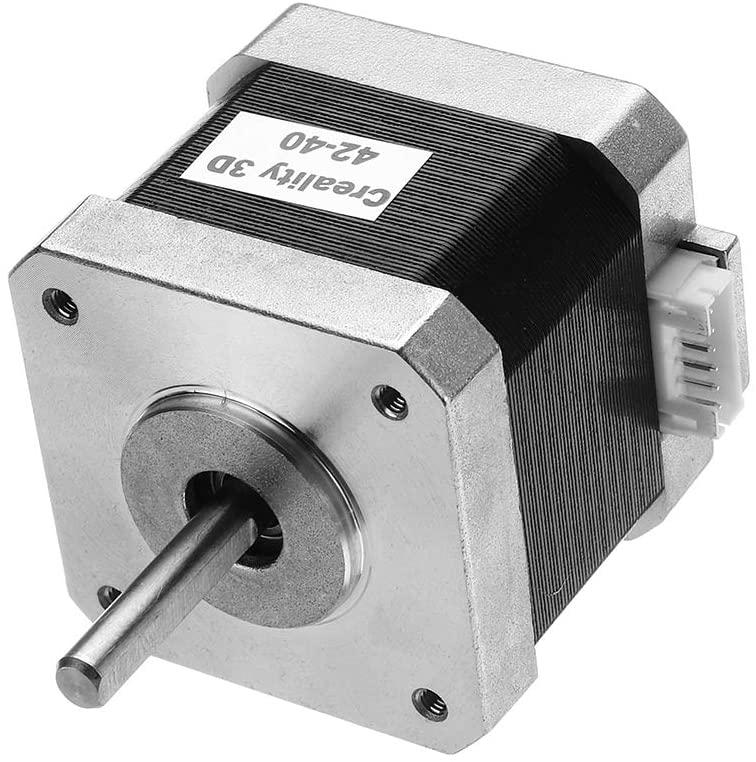

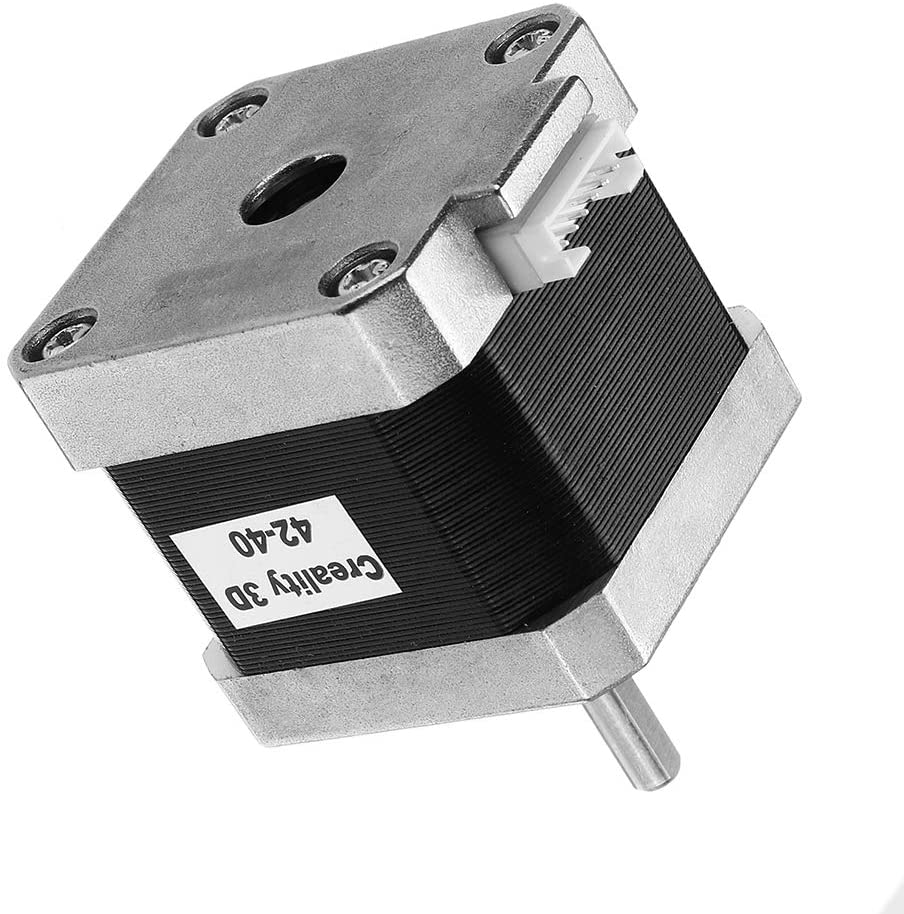

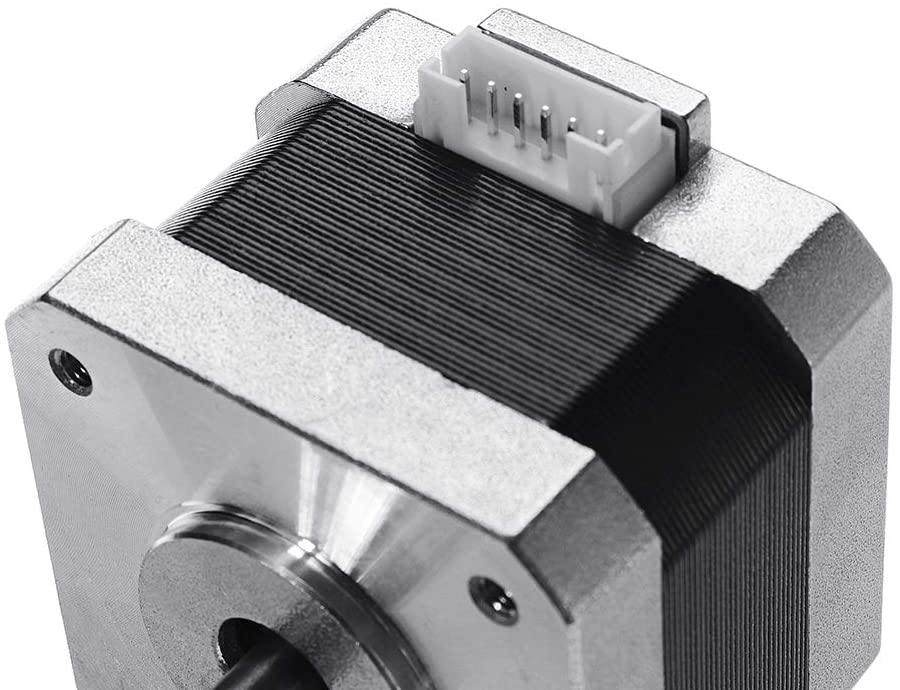

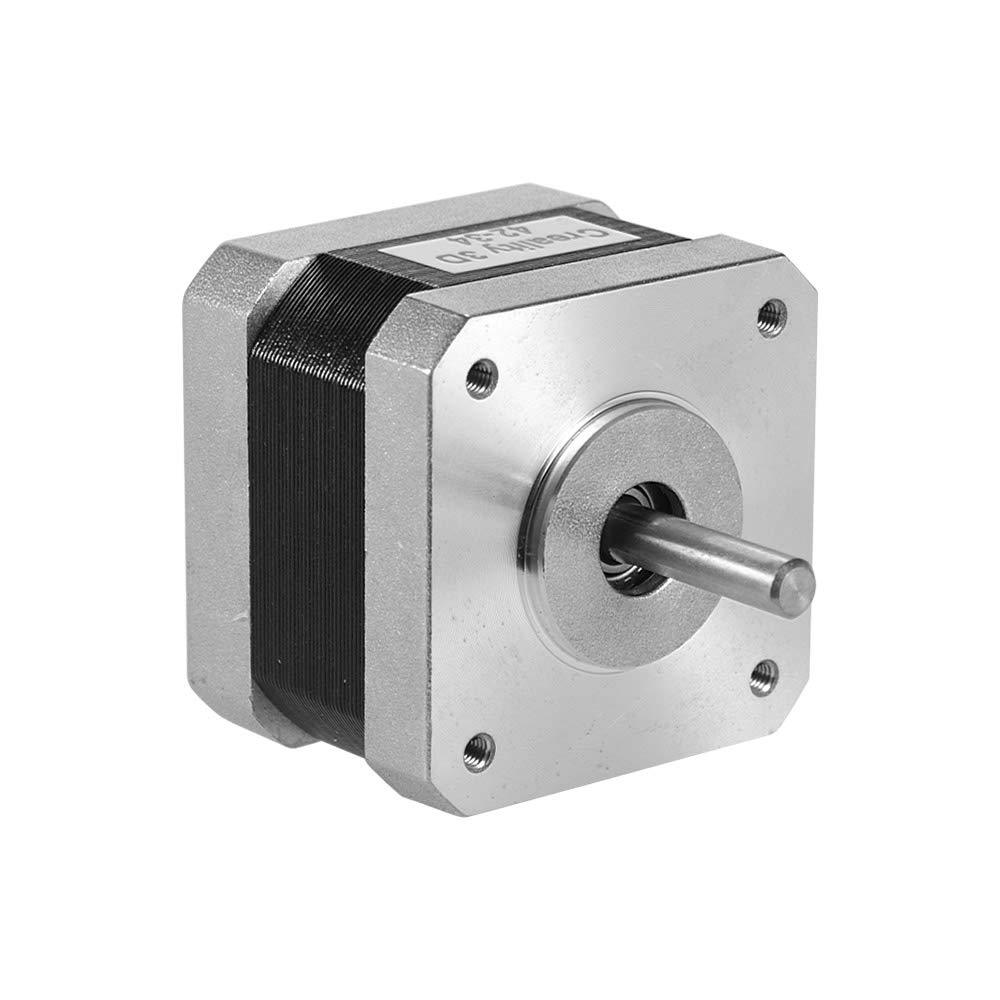

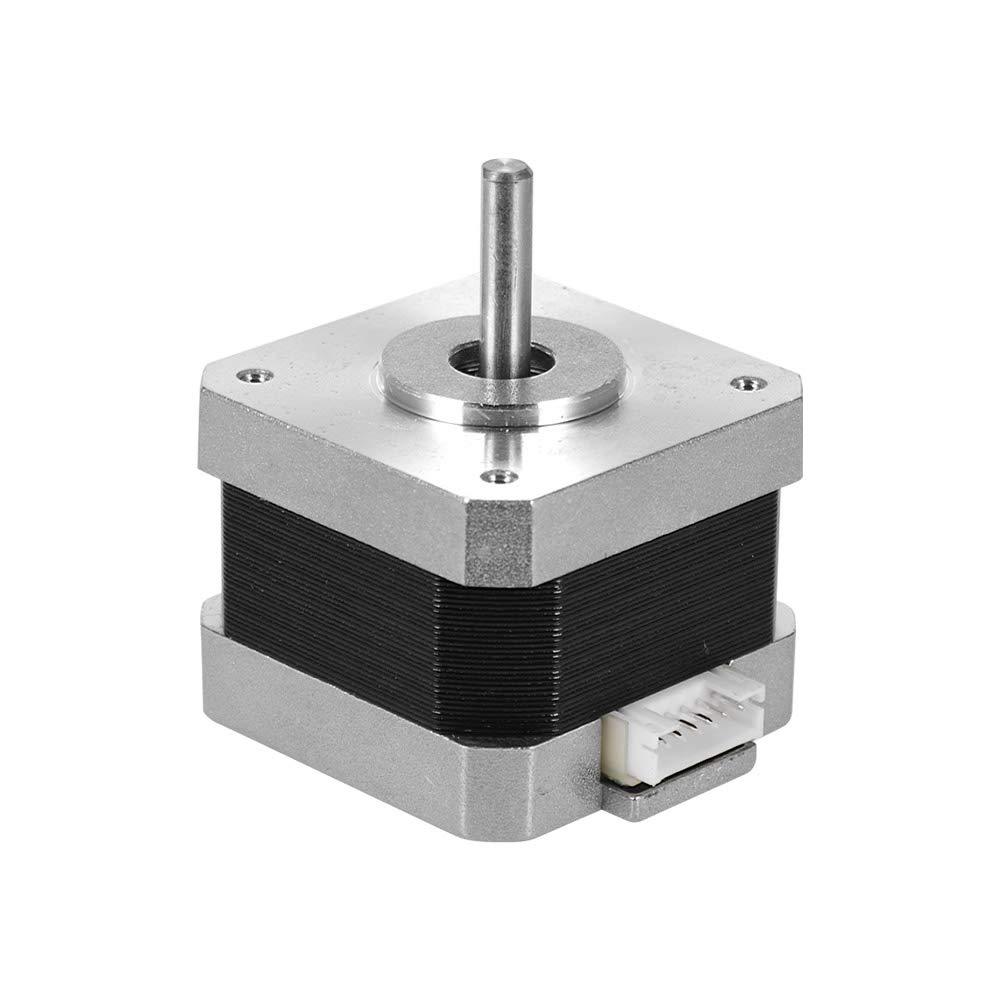

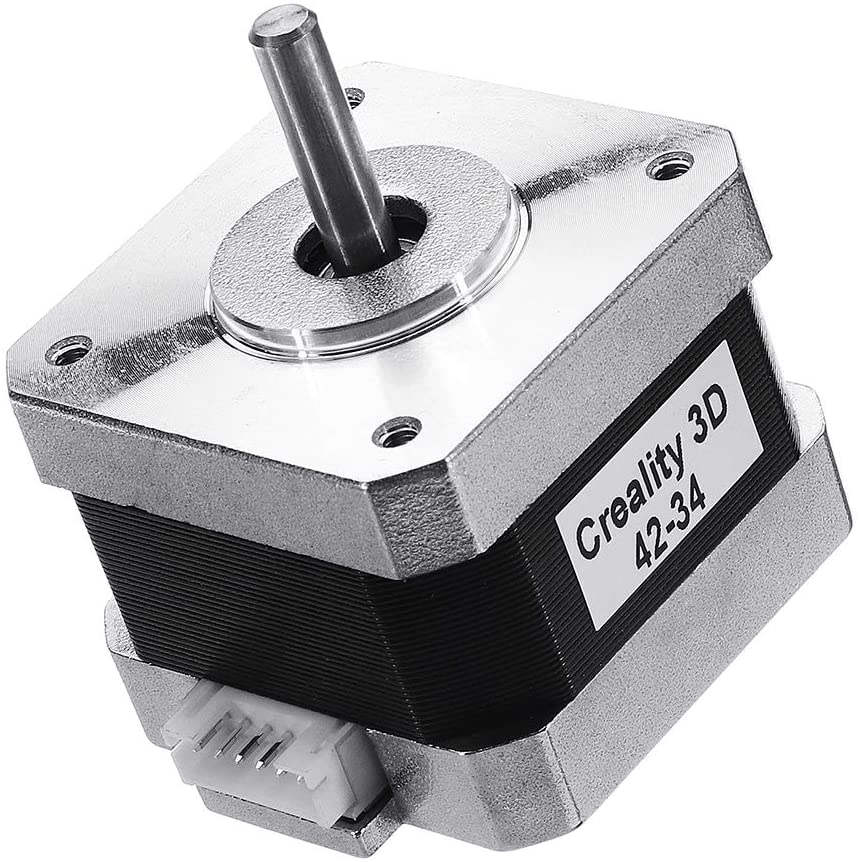

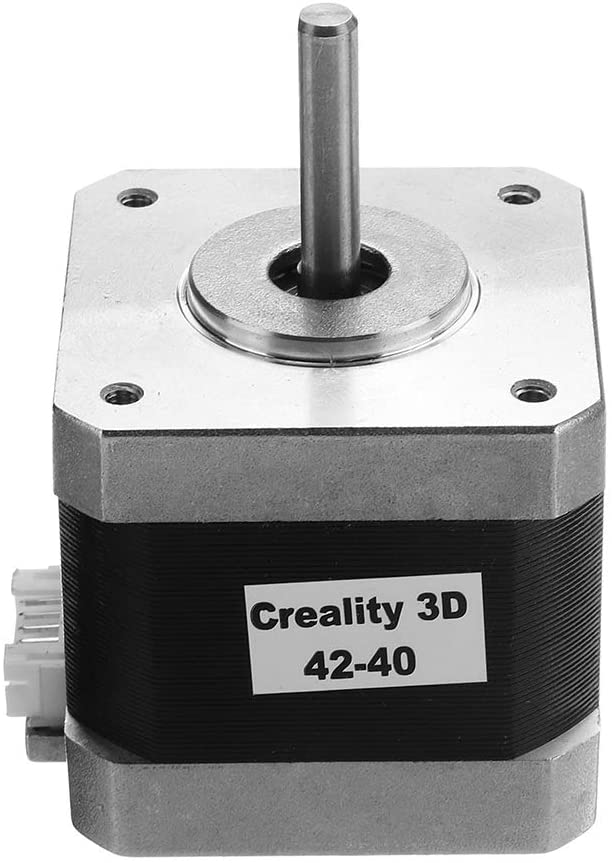

Motor paso a paso RepRap de 2 fases 34 motor 42-34, 42-40

Marca: Creality 3D
Nombre del artículo: Motor paso a paso RepRap 42

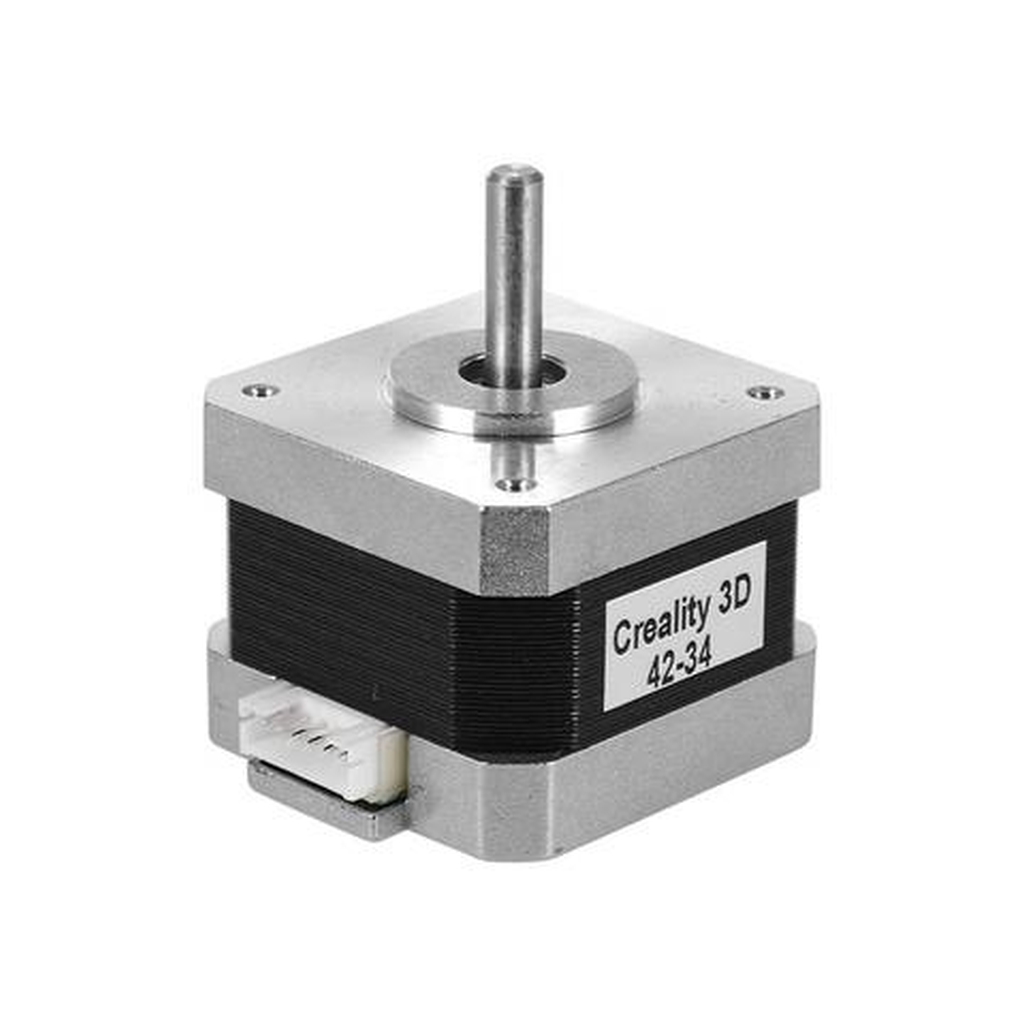

Número de artículo: 42-34 (ejes XYZ) Modelo 42-40 (Extrusor)
Ángulo de paso: 1,8 grados
Tensión Nominal: 4,83 V
Calificación actual: 1,5 (A)
Velocidad nominal: 1-1000 (rpm)
Par nominal: 0,4 (NM)
Ambiente Temperatura:-20º ~ + 50º
Longitud: 34mm

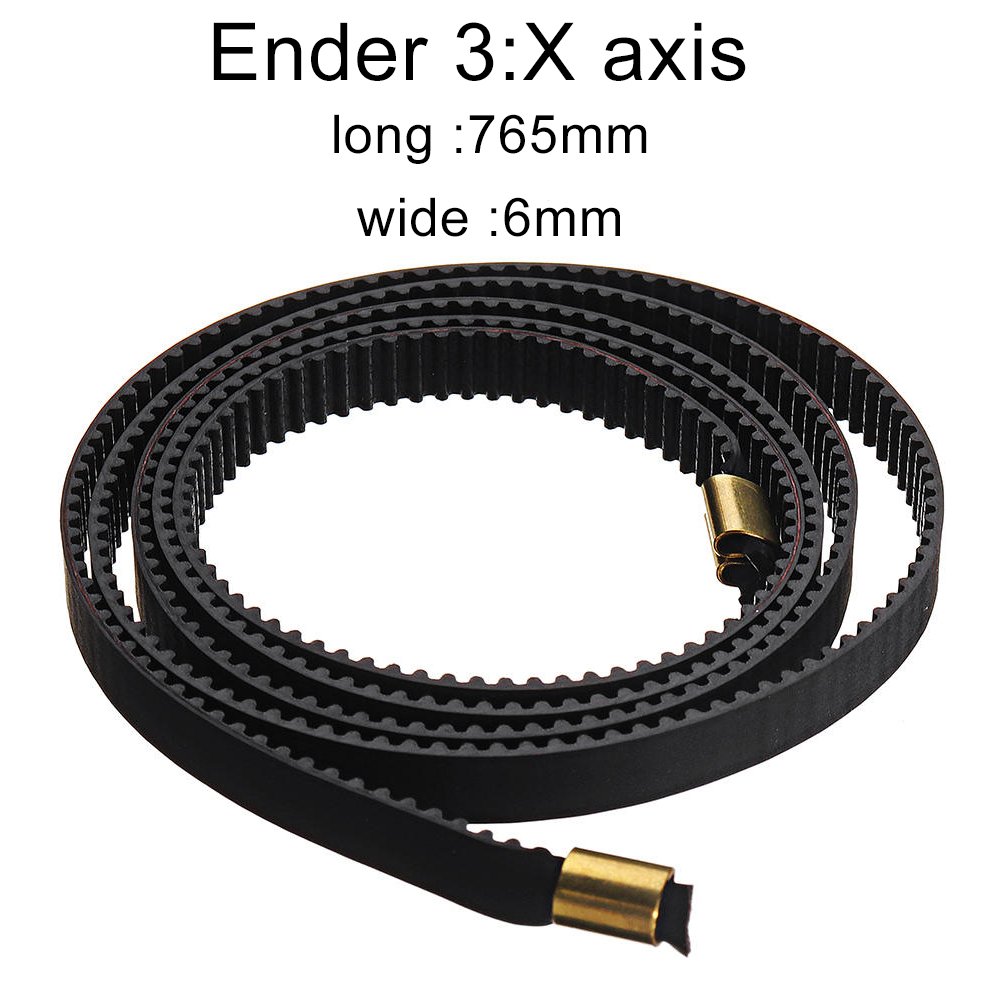

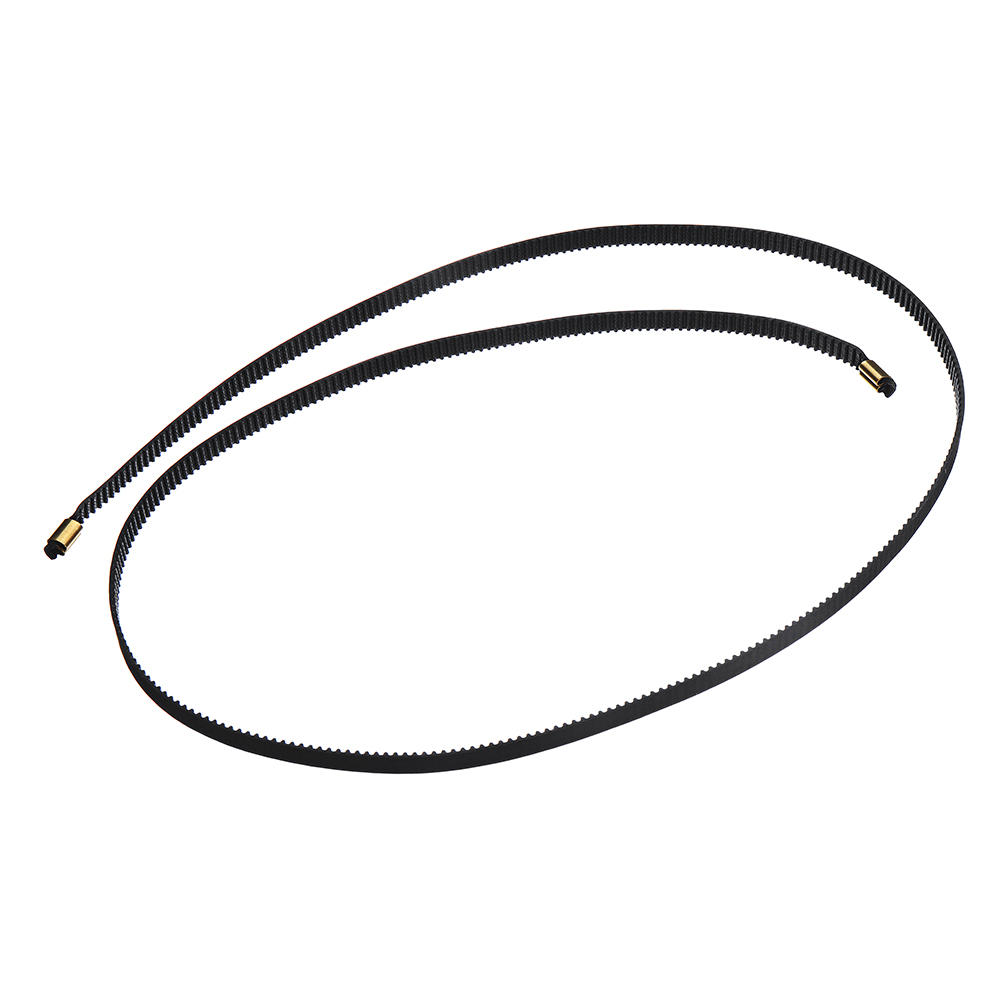

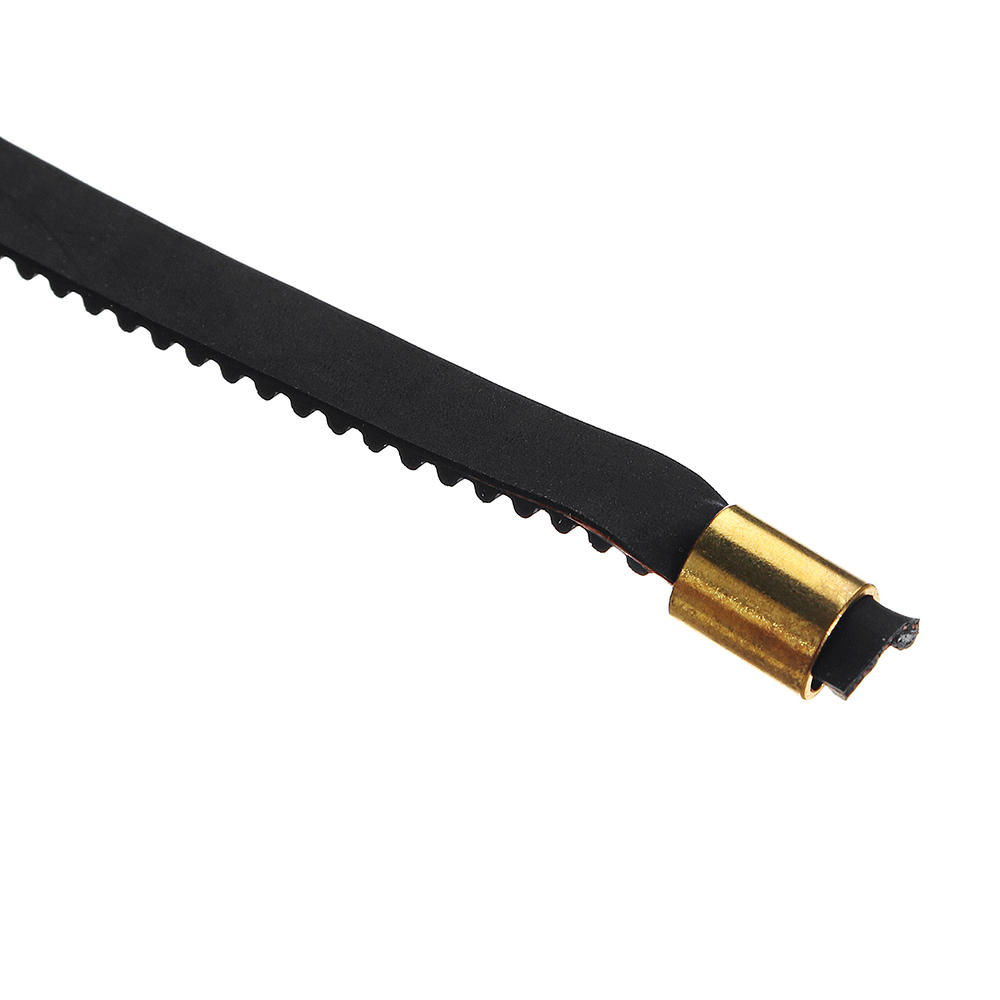

Correas 2GT6M

Marca: Creality 3D
Type: 2GT6M
Ancho entre dientes: 2mm
Altura de la correa: 1.38mm
Altura del diente: 0.75mm
Material: Goma
Eje X Longitud: 765mm
Eje Y Longitud: 720mm
Ancho: 6mm

Interruptor final de carrera

Marca: Creality 3D
Type:
Ancho entre dientes: 2mm
Altura de la correa: 1.38mm
Altura del diente: 0.75mm
Material: Goma
Eje X Longitud: 765mm
Eje Y Longitud: 720mm
Ancho: 6mm





LCD 12864 Control Panel Blue Screen Display for Ender-3/Ender 5






Cooling Fan Blower fan Oil Bearing for Ender-3

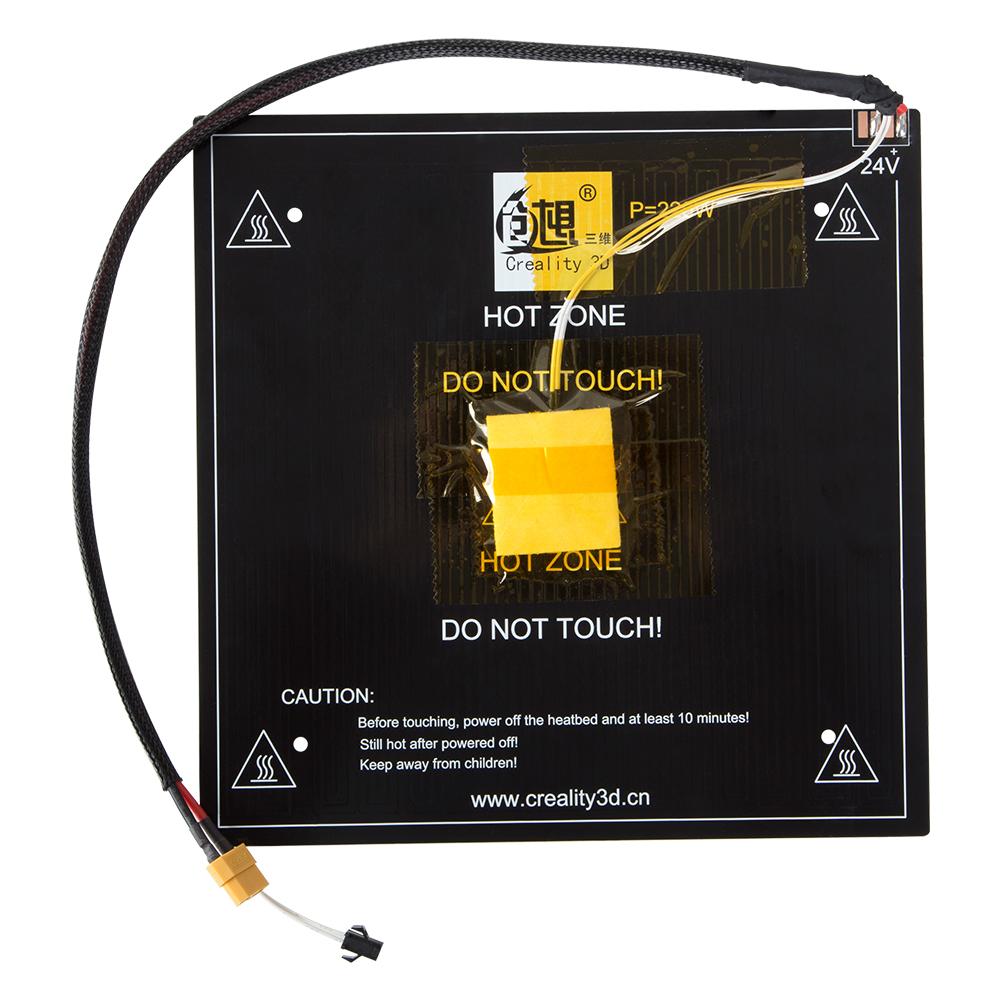

Ender 3/Ender 3 Pro/ Ender 5 Heatbed Platform Kit Hot Plate with Cable Line
